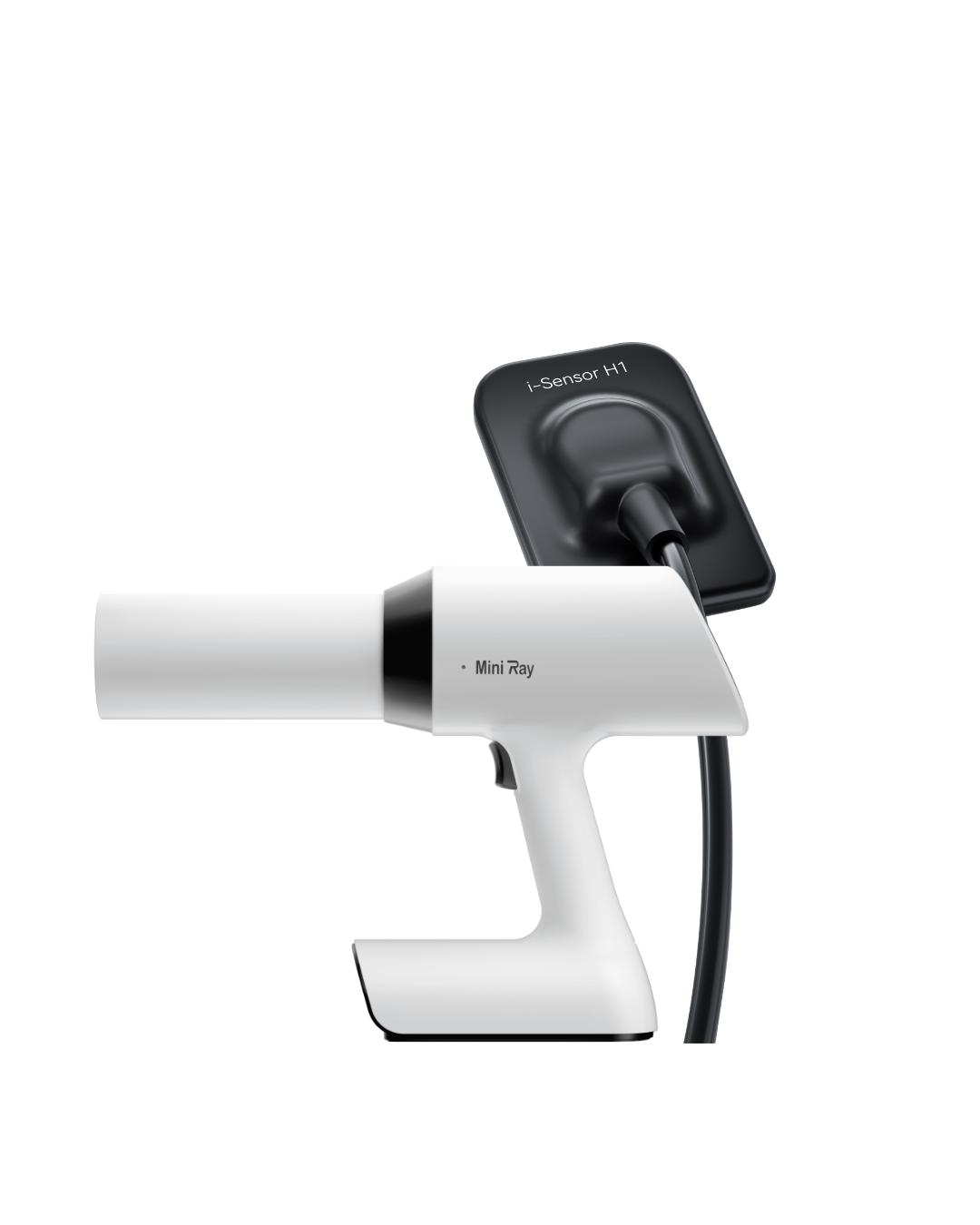

Mini Ray + i-Sensor Size 2
Mini Ray + i-Sensor Size 2
Mini ray
-THE MOST ECONOMIC & THE LATEST ADDITION OF PORTABLE X-RAYS OF WOODPECKER LINE
-Double radiation protection
-The radiation leakage from the body surface is less than 0,05mGy/h
-70 Kv tube voltage for excellent X-ray penetration
-2mA tube current for millisecond-level exposure to avoid shadow
-140W output power to meet diverse clinical needs
Powerful USA CHIP which enables high frequency close loop control for stable output and reduces the impact of low battery on image quality
-2500mAh*3s high capacity lithium battery ( long lasting) (TOTAL OF 7,500 mAh Battery)
-60,000 + exposure times
-2.8 HD Digital screen with ultra sensitive buttons
-Weight: 2.2 Kg
---------------------------------
i-Sensor
-Thinnest sensor: 4.5mm
-Optimized cut corners (Comfort)
-Excellent Waterproof & Dustproof
-Durable and reliable
-APS CMOS Technology (Efficient information& detailed image)
-BENDING TEST more than 8000 times
-theoretical resolution 25 Lp/mm
-Ai Supported
Primary technical parameters:
-Power adapter input: 5V/USB interface
-Effective area: 20*30mm(H1)/26*36mm(H2)
-Pixel matrix size 1000*1500(H1)/1300*1800mm(H2)
-Average Pixel size 20μm 4
-Effective resolution > 12lp/mm
-Specifications: 38.5*25*4.5mm(H1)/40.0*31.0*4.5mm(H2)
-Weight: 118g(H1)/158g(H2)
