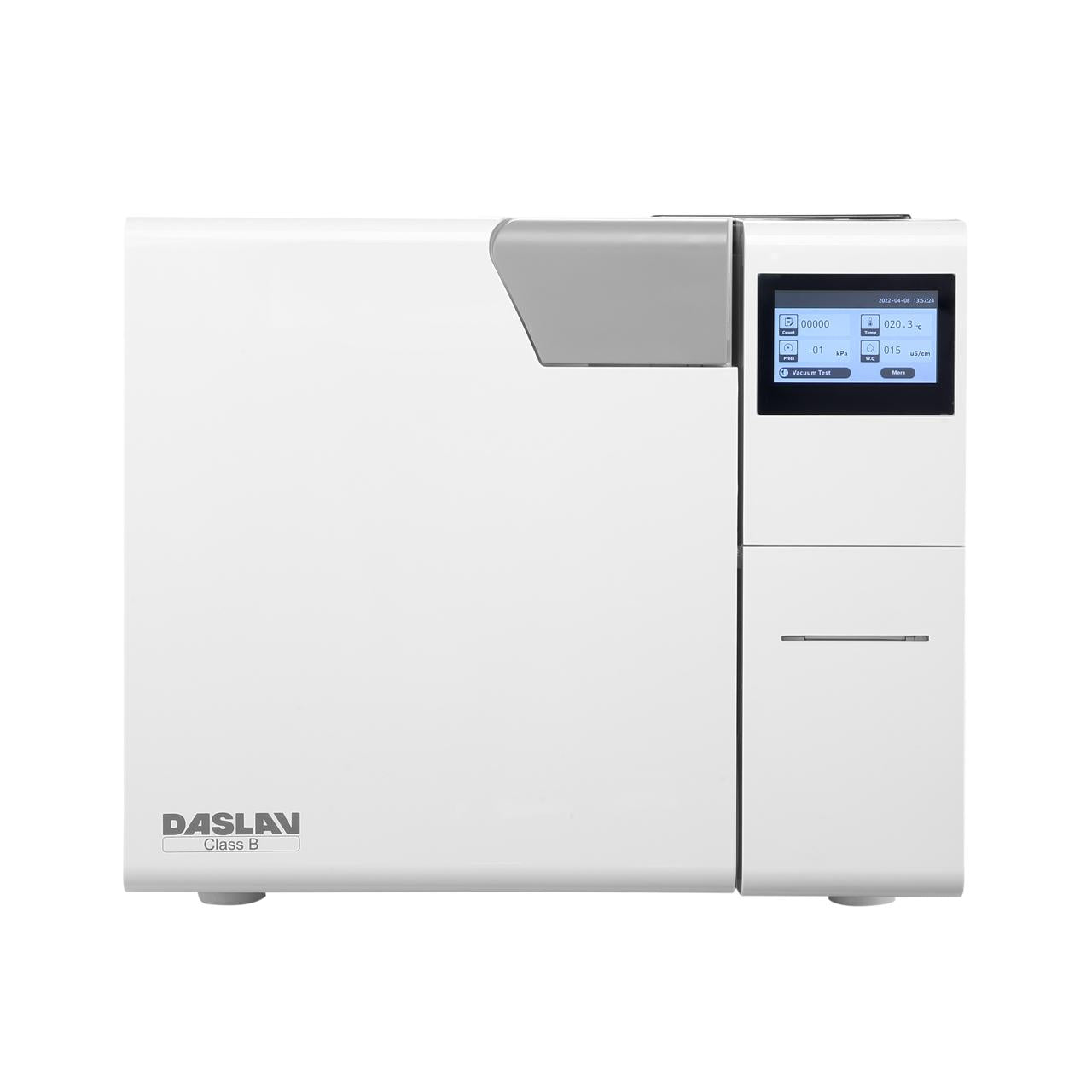

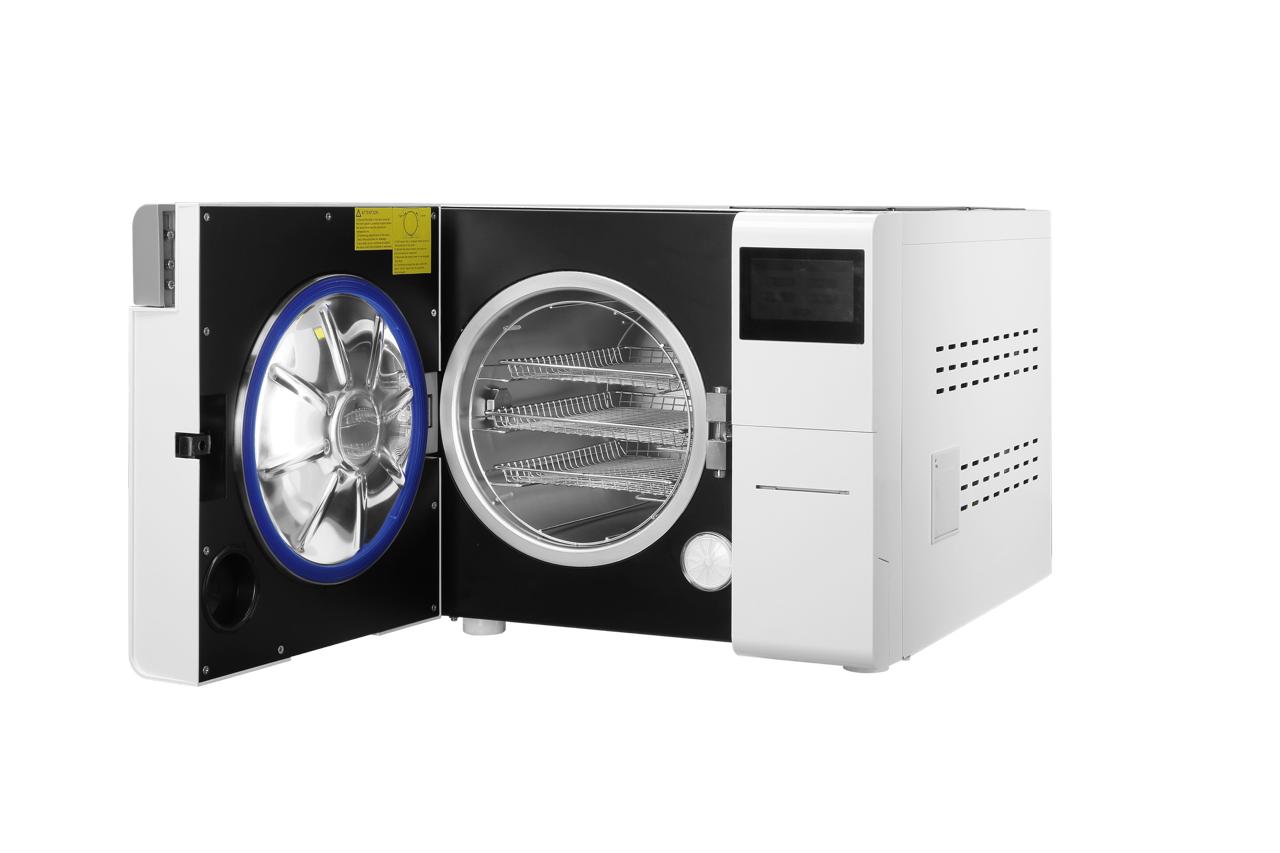

Autoclave Yeson Daslav S 23L TSD

Technical Specifications — DASLAV S (TSD) Fast Dry Autoclave

Electrical

Input Voltage: 220V / 50–60Hz

Power: 1950 W

Pump: Thomas pump (optional)

Chamber & Unit Dimensions

Chamber Size: Ø 250 mm × 450 mm

Product Size: 505 × 430 × 650 mm

Installation Depth Required: 60 cm

Weight

Net Weight (N.W.): 56 kg

Gross Weight (G.W.): 63 kg

Programs & Cycles

134°C Universal (Class B)

134°C Quick

121°C Universal

134°C Prion

B&D / Helix Test

Vacuum Test

Performance

Fast Dry Technology

Full Cycle Duration (with 90 handpieces): ~39 minutes

Preheating: 5 min

Sterilizing: 16 min

Drying: 4 min

Dual Loading: Supports a large number of instruments using stainless-steel baskets.

Excellent Dryness: Designed to solve the common issue of wet packs.

Features

Patented steam generator

Class B Autoclave (highest standard), EN13060 compliant

Separate double water tanks

Multi-language operating system (12 languages)

Medical traceability systems

Built-in printer

Label printer

SD memory

Internal memory

Optional racks:

Circle rack

Basket rack
