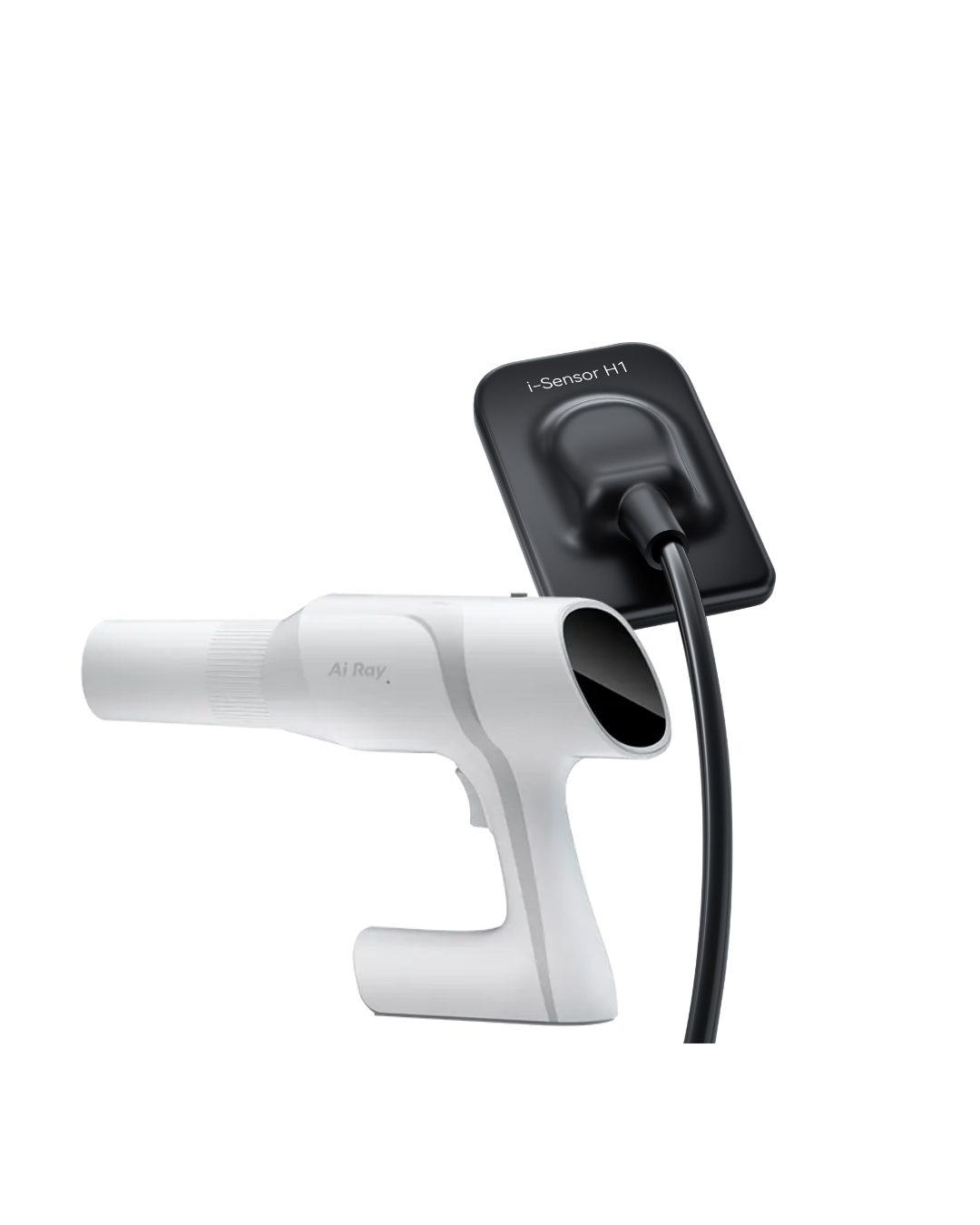

Ai Ray Pro + i-Sensor size 1.5

-100% ONE-SHOT PRECISION

-CORE TECHNOLOGIES BEHIND THE PRO VERSION

-3 STEPS TO “ZERO-MISS” OPERATION

Accessory:

Exposure hand brake: standard

Backscatter Shield: optional

Holder: optional

Focal spot: 0.4mm

Exposure time range: 0.02-2.0 sec

Number of exposures (Full Charge) : 1500 Films

Tube voltage & current: 70kV 2mA

Battery: 2500mAh*6

Weight: 2.6kg

----------------------------------
i-Sensor

Thinnest sensor: 4.5mm
-Optimized cut corners (Comfort)
-Excellent Waterproof  & Dustproof
-Durable and reliable
-APS CMOS Technology (Efficient information& detailed image)
-BENDING TEST more than 8000 times
-theoretical resolution 25 Lp/mm
-Ai Supported

Primary technical parameters:
-Power adapter input: 5V/USB interface
-Effective area: 20*30mm(H1)/26*36mm(H2)
-Pixel matrix size 1000*1500(H1)/1300*1800mm(H2)
-Average Pixel size 20μm 4
-Effective resolution ＞ 12lp/mm
-Specifications: 38.5*25*4.5mm(H1)/40.0*31.0*4.5mm(H2)
-Weight: 118g(H1)/158g(H2)
