WOZO A2
Product details
Product information
Shipping costs for dental units will be determined after the order is placed. A member of our customer service team will contact you to confirm the exact shipping fee.

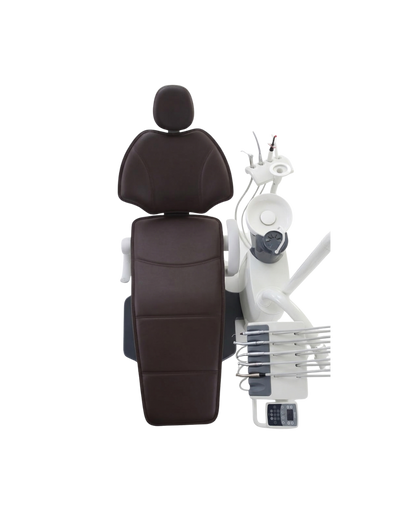

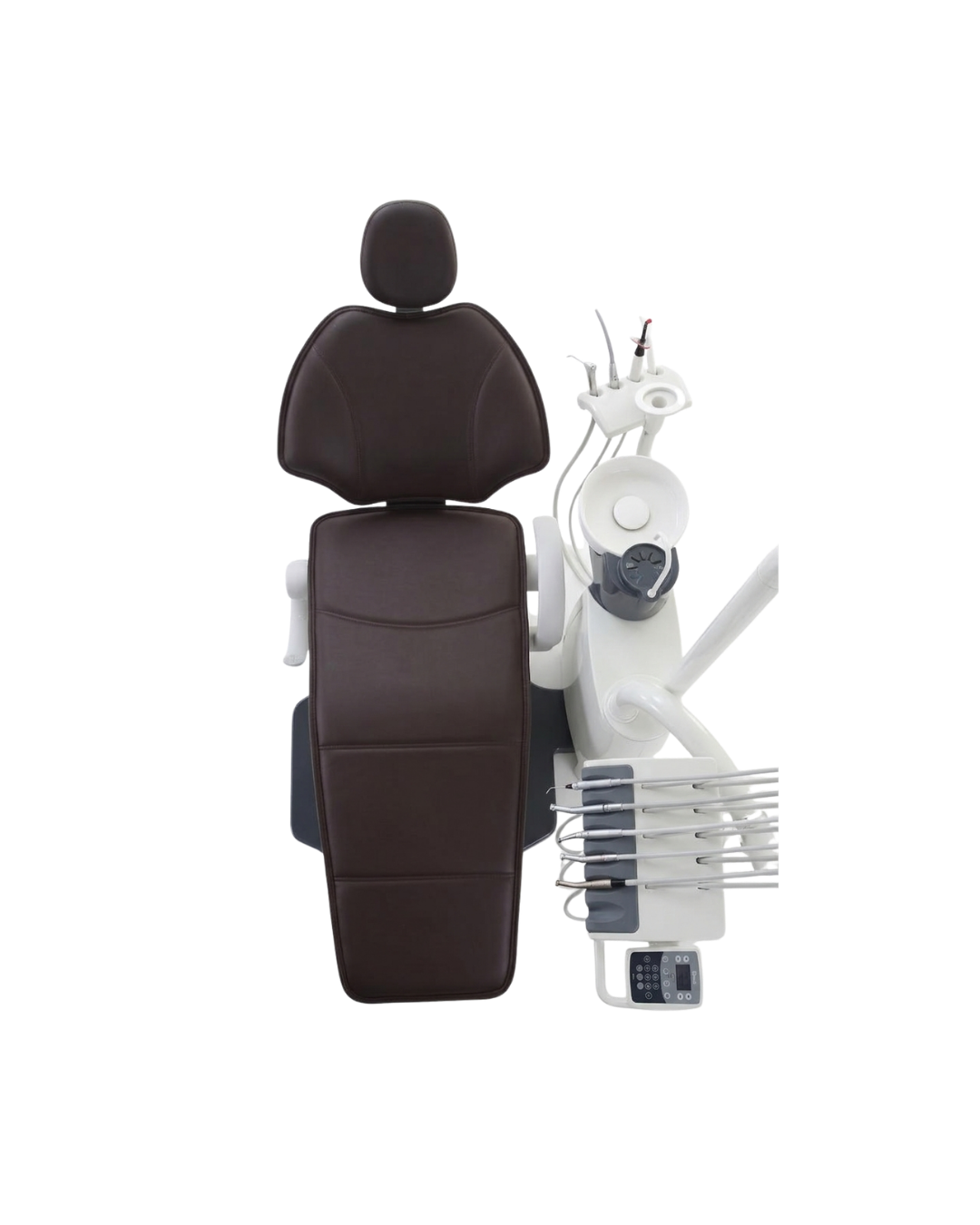

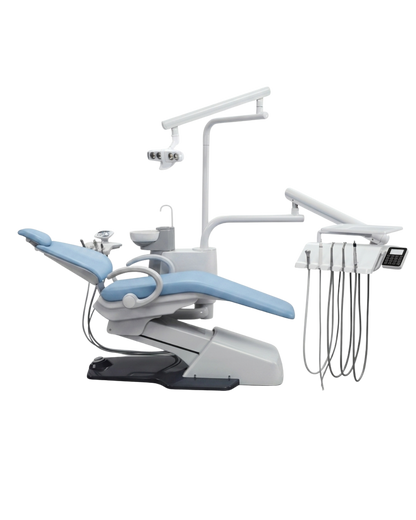

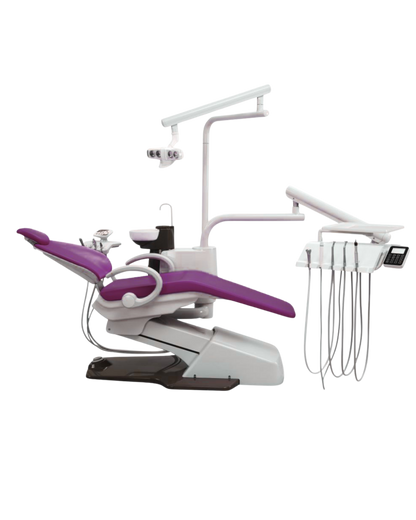

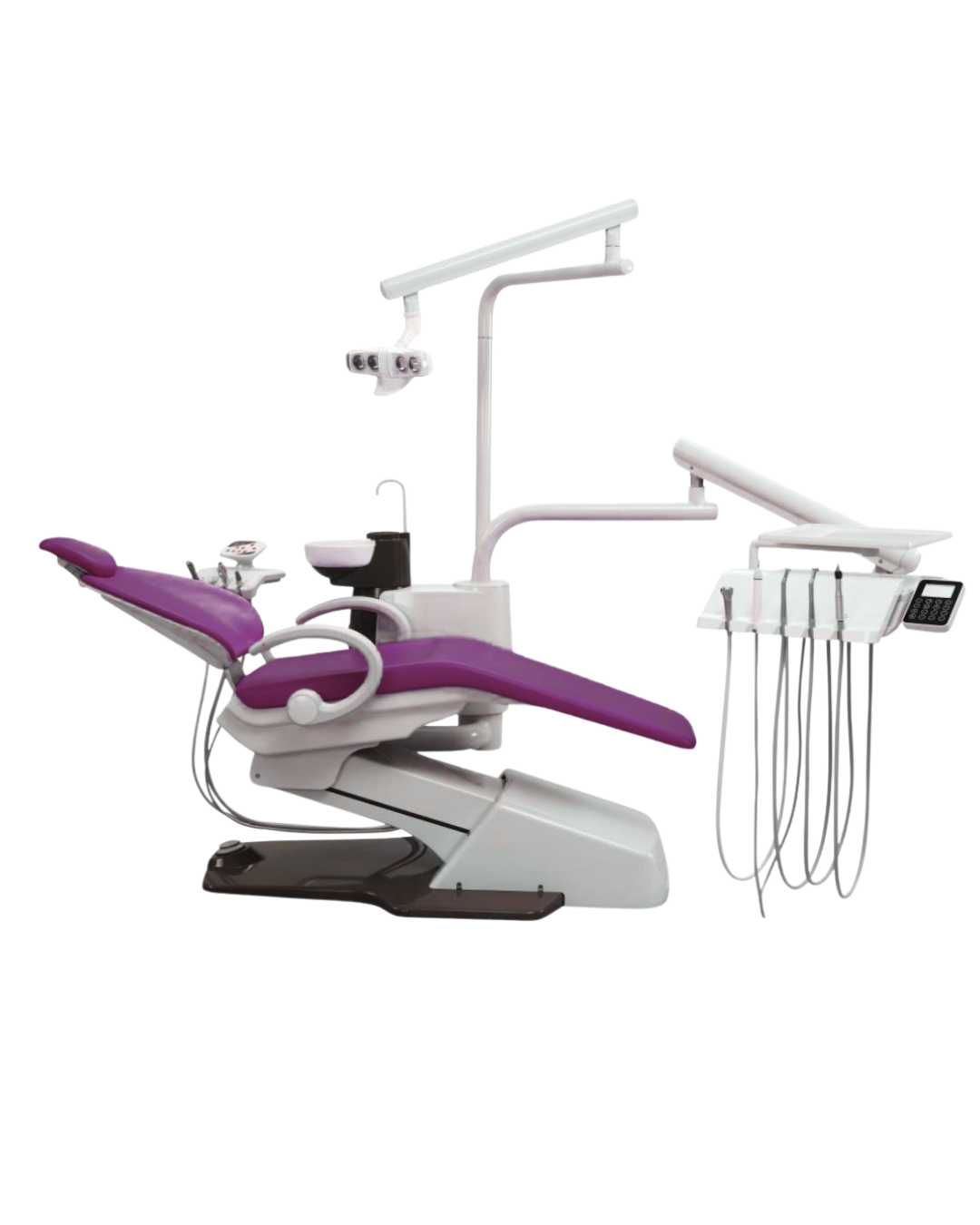

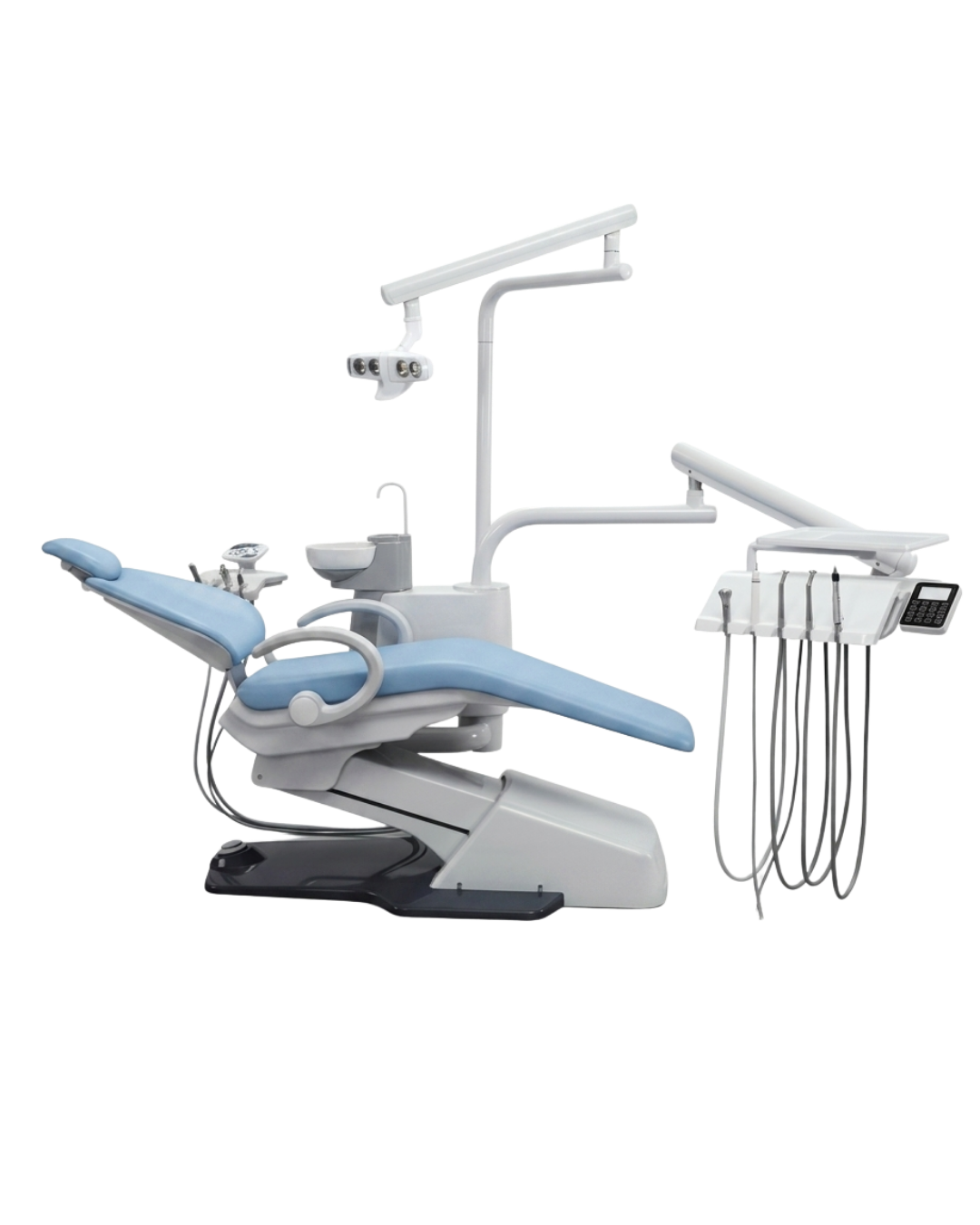

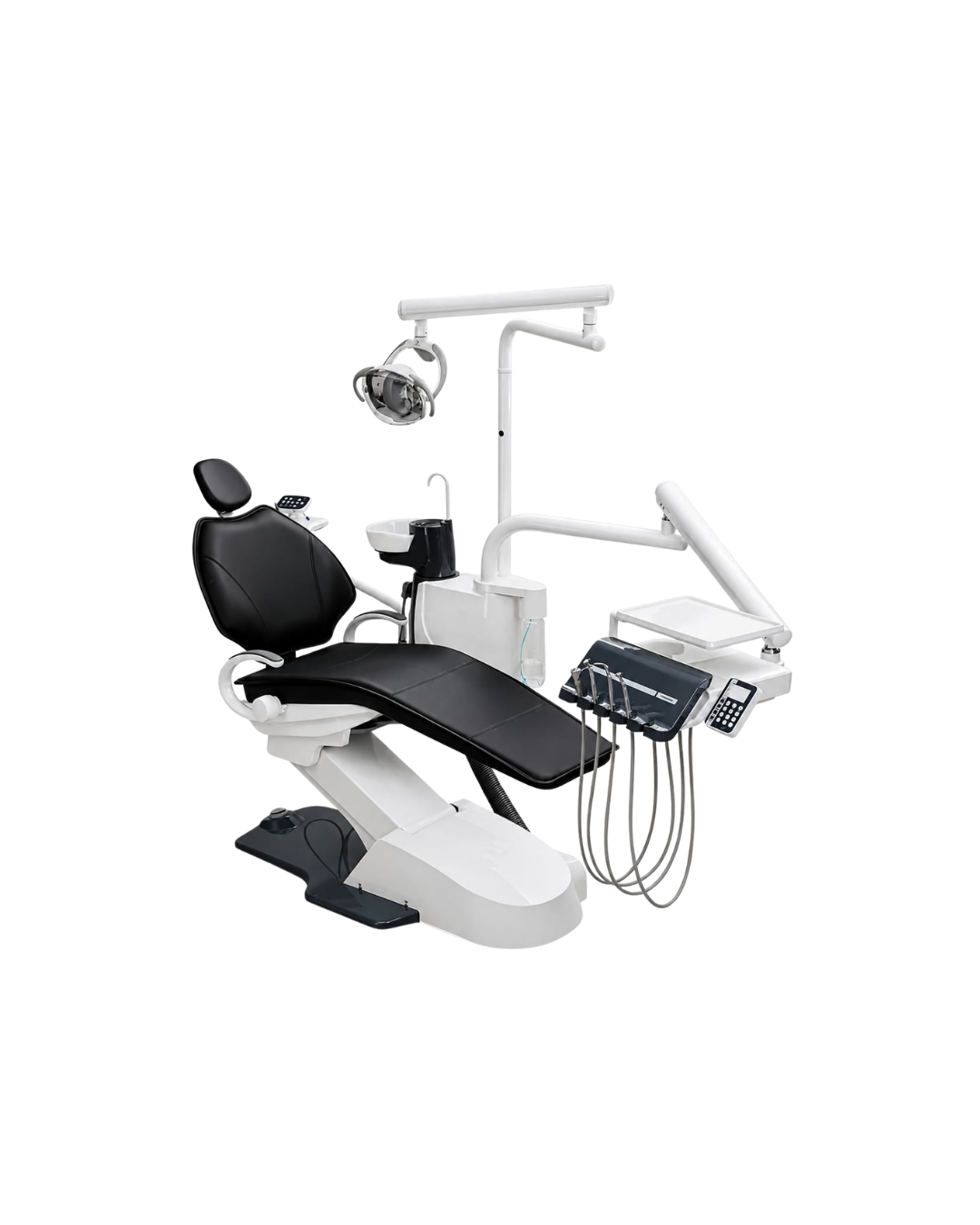

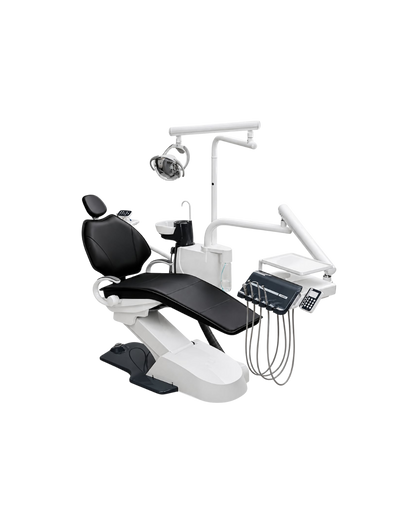

The Woson WOZO (often referred to as the WOZO A2) is a professional dental unit designed for complex clinical procedures, emphasizing ergonomics for both the practitioner and the patient.
Technical Specifications
The WOZO maintains high-performance standards similar to other premium Woson models but with its own specific physical profile.
| Category | Specification Details |
| Power Supply | 220V / 1100W |
| Motor Voltage | 24V (Imported Motor Driving System) |
| Overall Dimensions | 1750 x 930 x 1600 mm |
| Water / Air Pressure | Water: 2 kg – 4 kg / Air: 5 kg |
| Net Weight | 205 kg |
Key System Features
1. Advanced Control & Positioning
Programmable Positions: Features a system with 9 programmable positions, allowing for highly customized workflow automation.

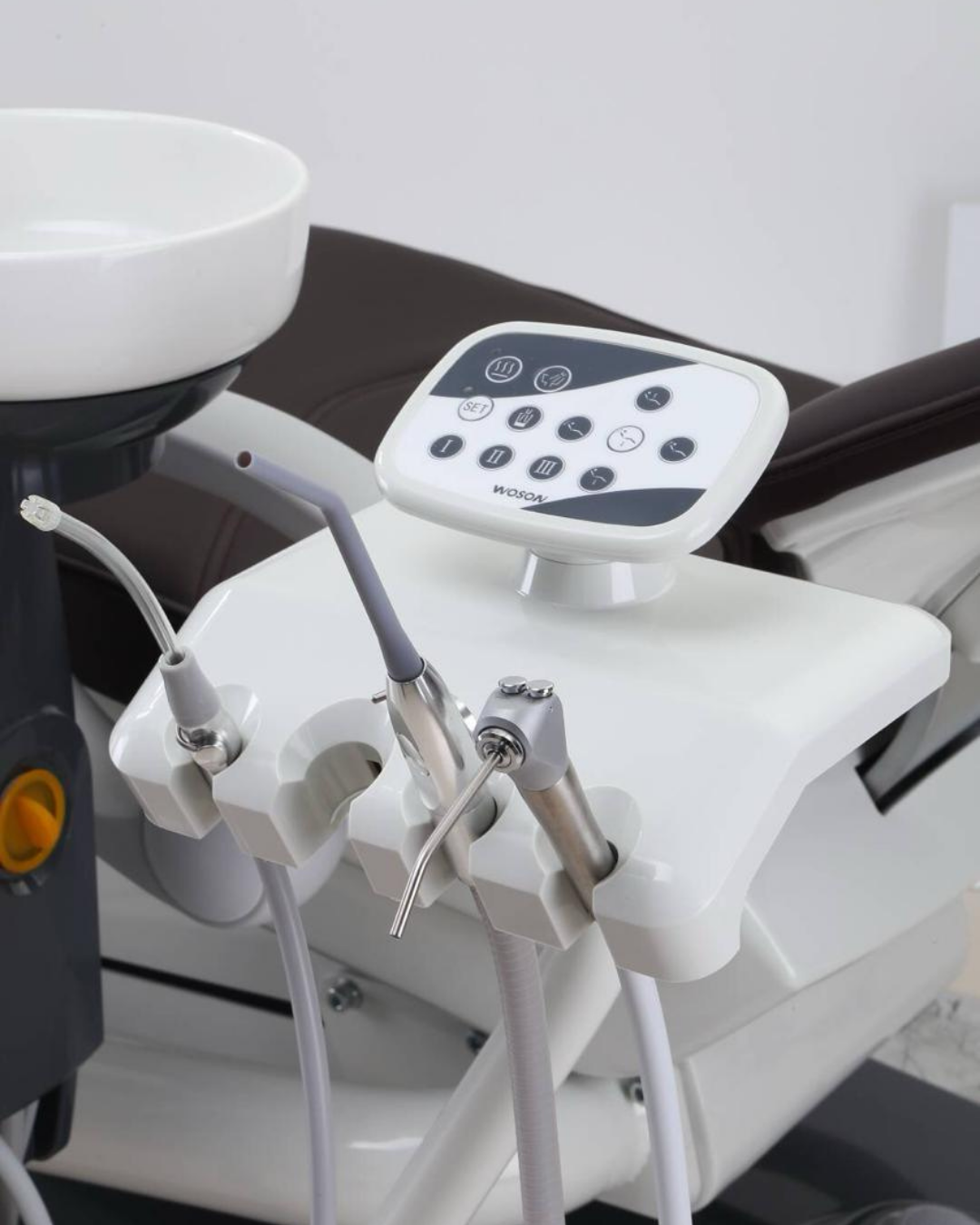

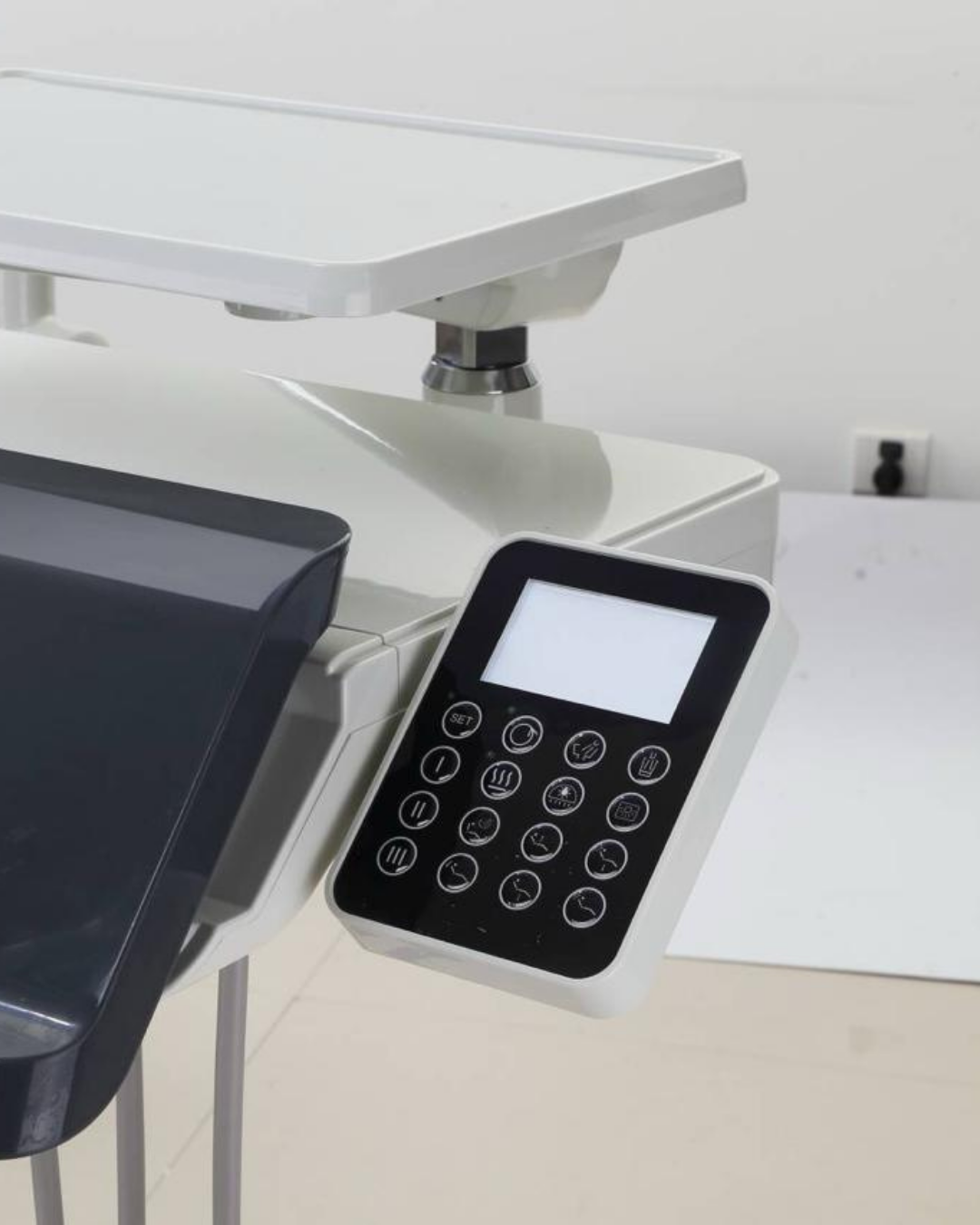

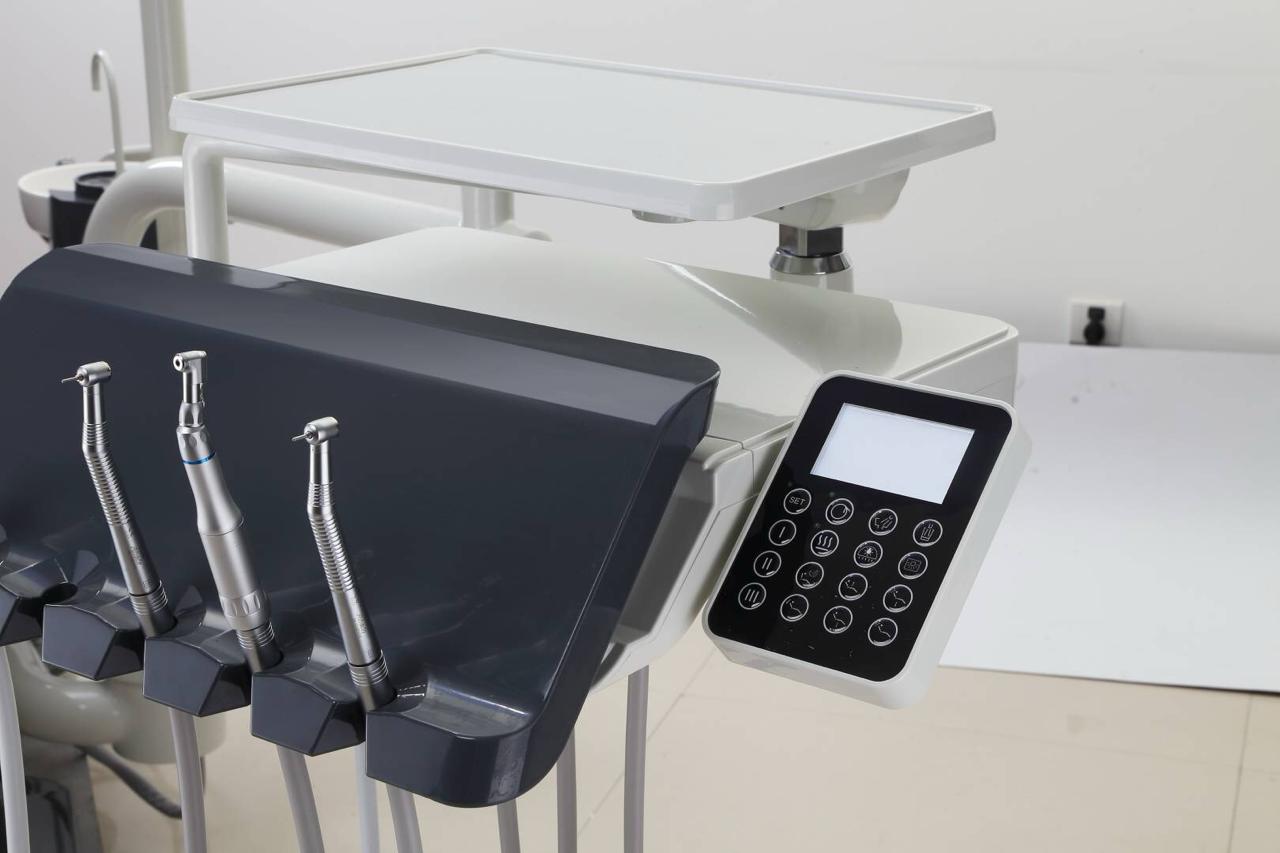

16-Button Control Panel: The main delivery tray includes a comprehensive multi-function control panel with approximately 16 buttons.
Joystick Control: Includes a joystick for manual chair movements, providing intuitive handling for the dentist.
Dual Foot Control: Equipped with multi-function foot controls to maintain a sterile hands-free environment.
2. Ergonomics & Patient Comfort
Chair Linkage & Compensation: The backrest and seat cushion include a 10° angle compensation function, ensuring the patient does not feel "squeezed" or displaced during chair adjustments.
Upholstery: Comes with half-memory cushions and is available in fiber leather or soft PU options for increased patient relaxation.
Headrest: Features a double-articulated headrest to accommodate various patient sizes and treatment angles.
3. Delivery System & Lighting
Versatile Delivery: The instrument tray is available in hanging hose, top-mounted, or mobile cart configurations.
Illumination: Typically equipped with either the Faro EDI LED or a proprietary Woson LED lamp. Some configurations offer light intensity up to 43,000 lux with color temperatures close to natural light.
Integrated Tools: Includes a built-in LED X-ray viewer and a 6-position instrument tray with a ~55° working angle for easier access to tools.
4. Hygiene & Safety

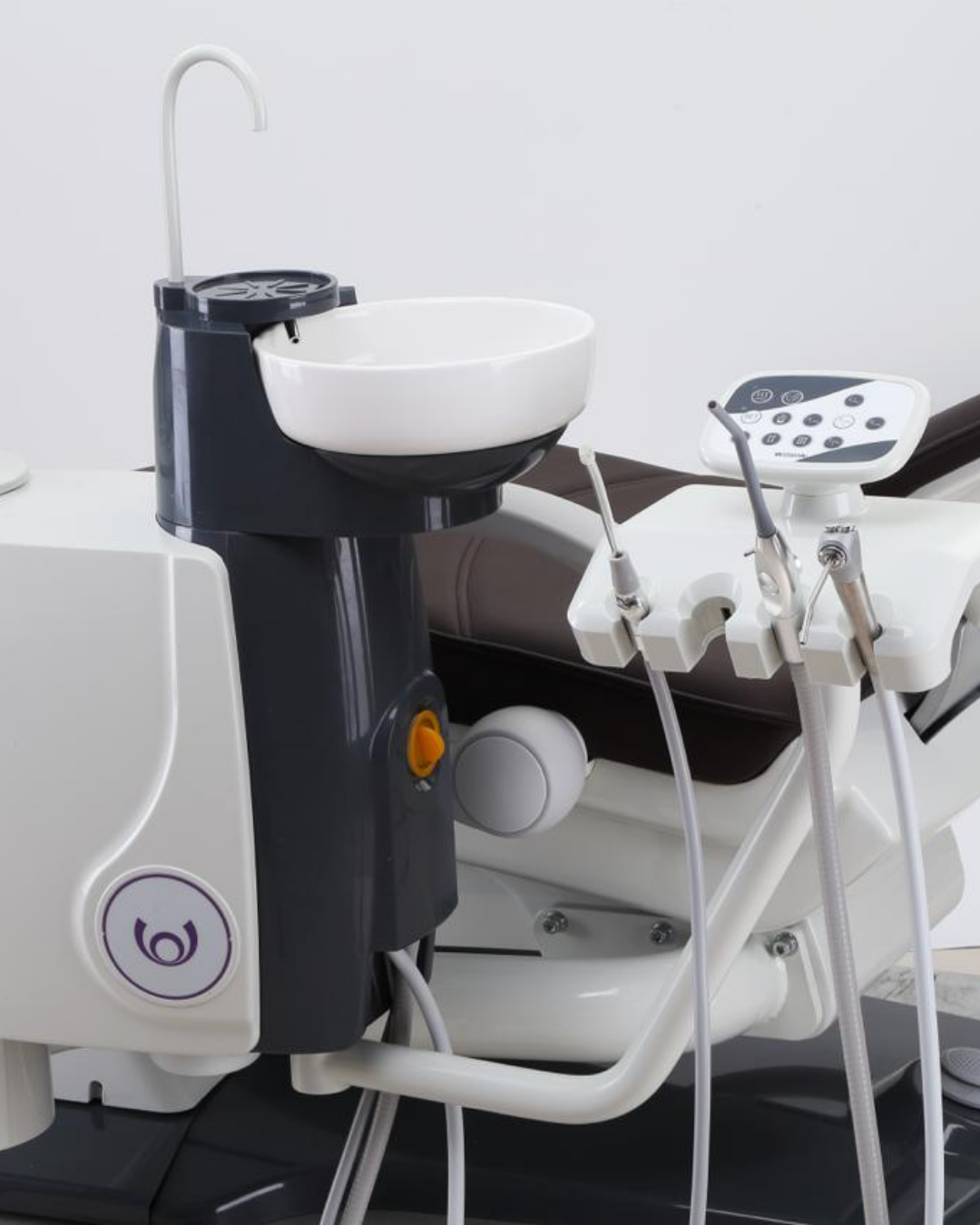

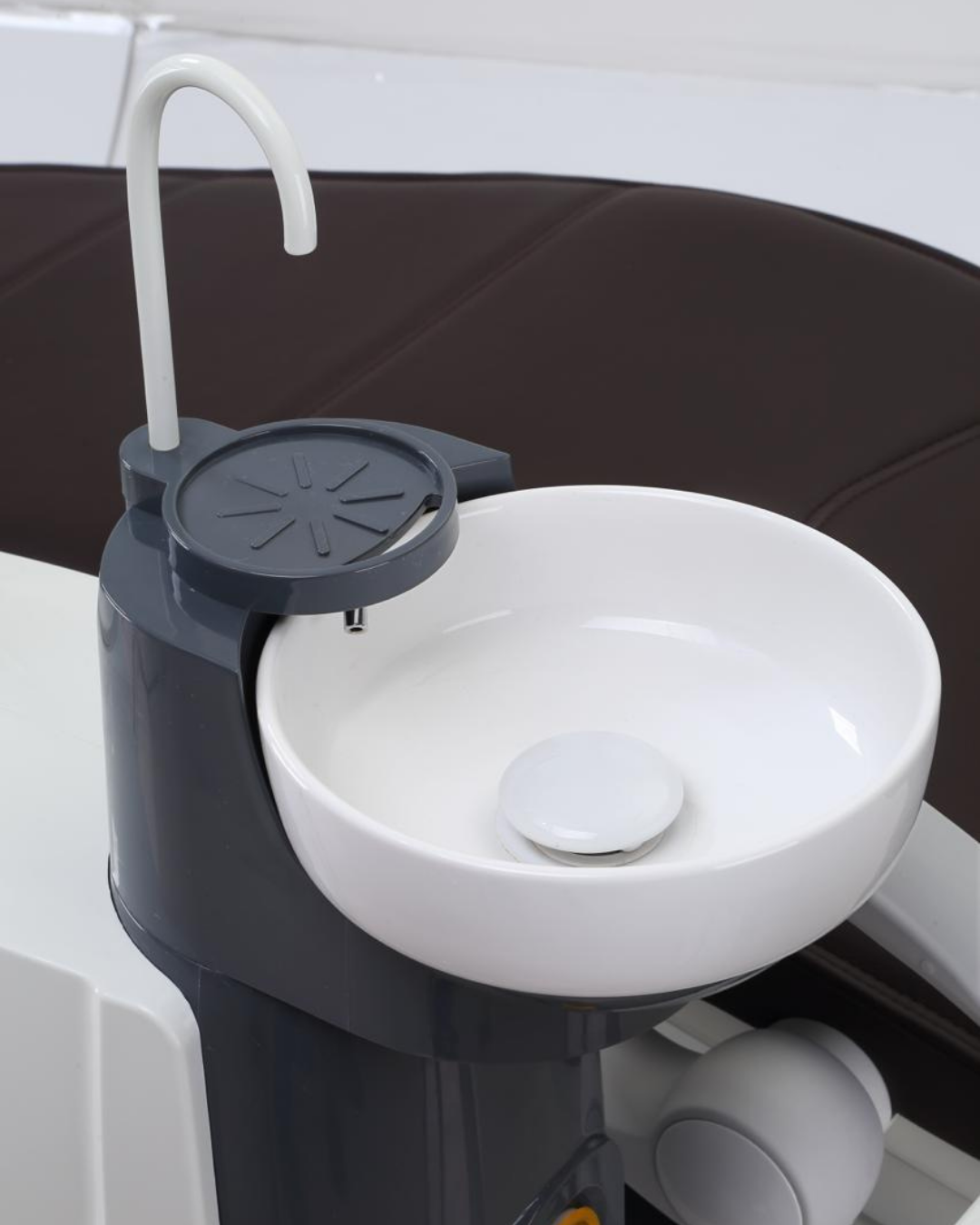

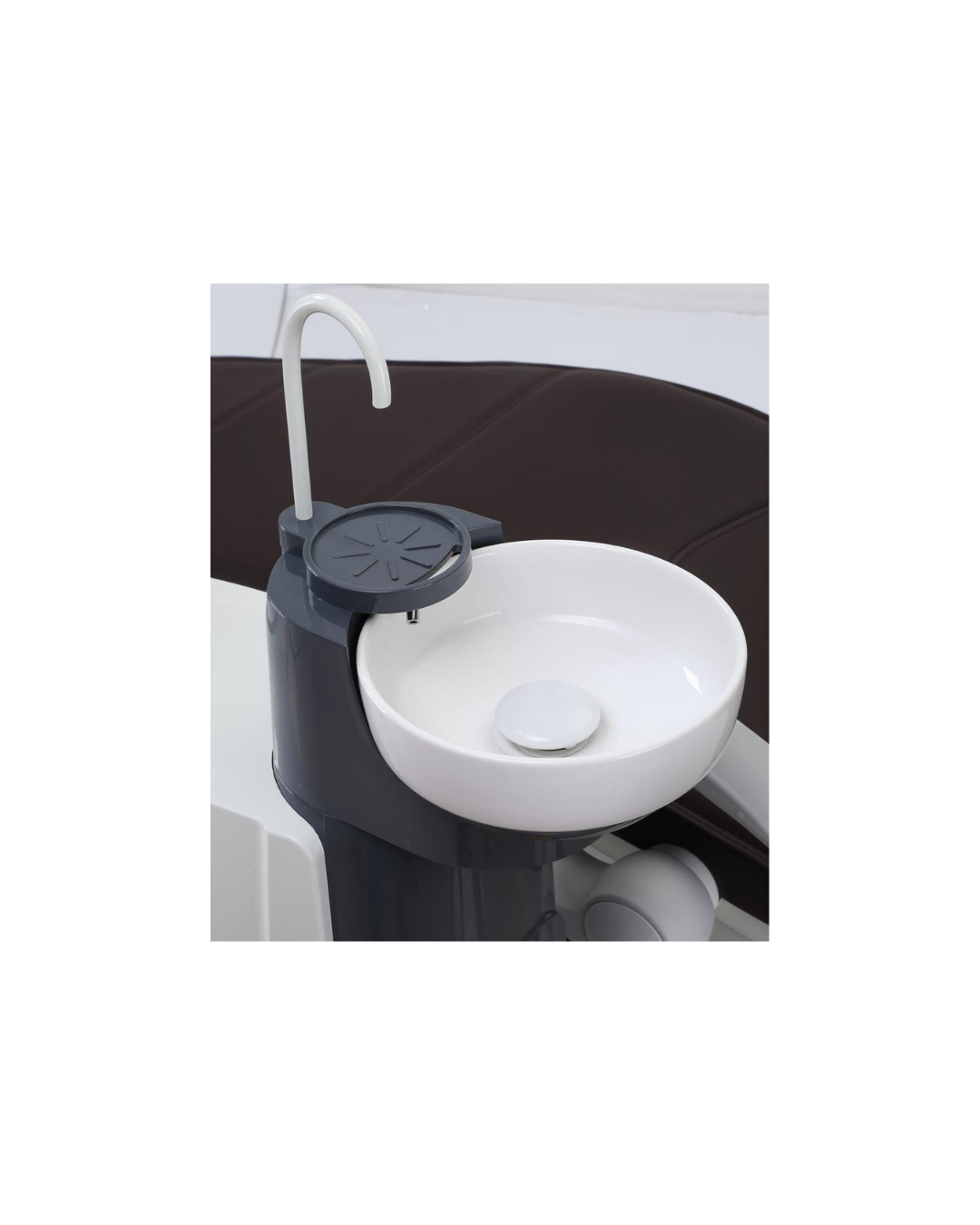

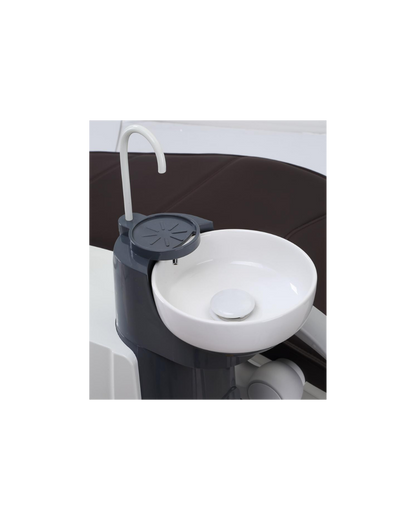

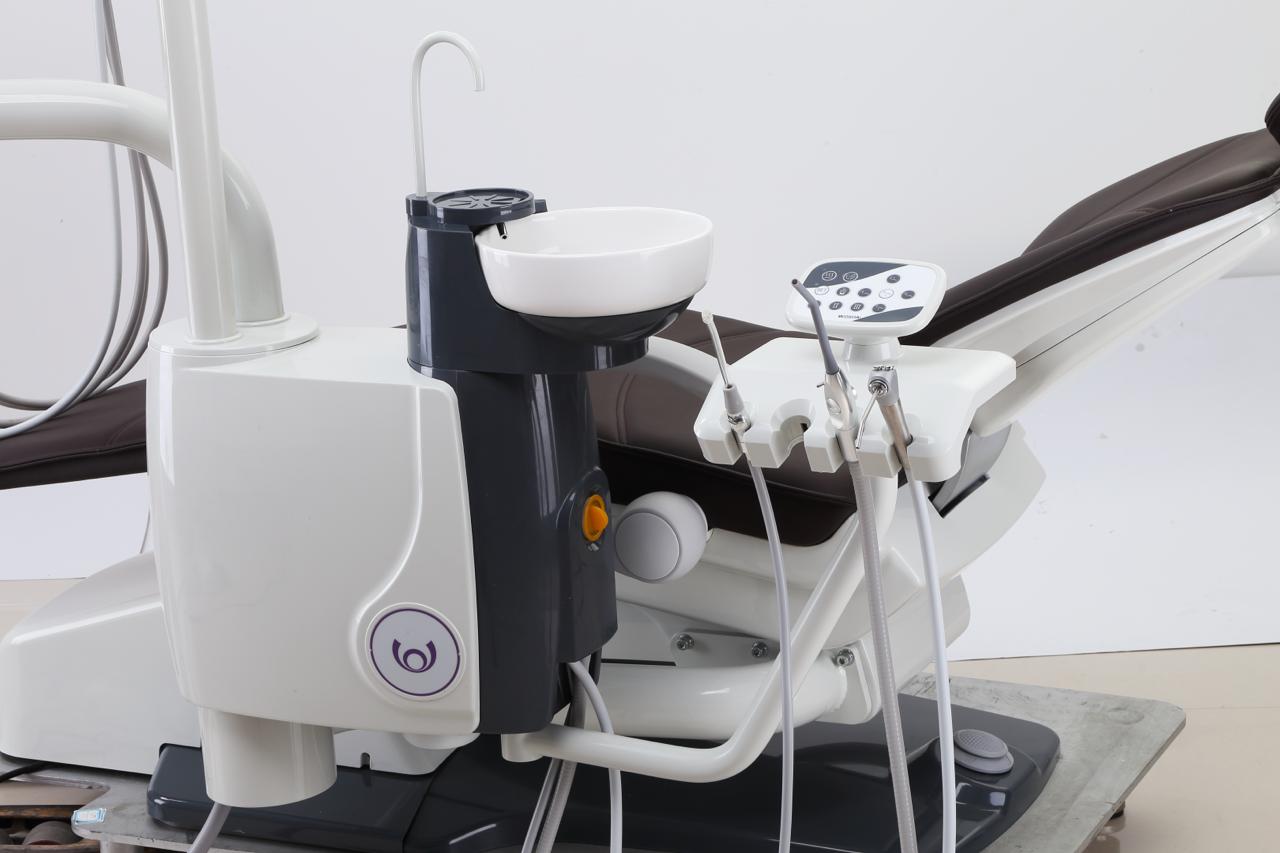

Rotatable Spittoon: Features a 180° rotatable ceramic spittoon for patient convenience and easy cleaning.
Water System: Includes a built-in water purification system and an anti-dry water heater.
Emergency Stop: An integrated emergency stop system automatically triggers a reset function if the driving motor is blocked, protecting the patient and equipment.
